Create a Quest Definition

To create a quest definition first a Quest must defined through the Admin Console:

Defining A QuestDefinition

The first step to defining a QuestDefinition is to login to your local cluster Admin Console.

In the Admin Console on the left navigation menu, select GamePlay -> Quests -> Definitions -> Progress:

On the Definitions page, click the top-right Create button:

This will bring up the Quest Definition Creation window:

The minimum fields required for a QuestDefinition are the following fields:

Field	Description
Name	The Unique name of the quest
Title	The textual Title or name of the quest
Description	The textual Description of the quest
Icon	The Icon to display when representing the quest
Entity UId	The universally unique identifier of the entity that gives out the quest
Product UId	The UId of the product that this quest is associated with
Requirements	List Of QuestRequirement objects to complete this quest
Rewards	List of QuestReward objects awarded on quest completion
Date available	The date and time that the quest will be first made available
Date Finished	The date and time that the quest will no longer be available
Frequency	The frequency that the quest can be repeated (i.e. 5min, 1h, 1w)
Unlock Requirements	List Of QuestRequirement objects to unlock this quest
Autostart	Set to true to have quests automatically start tracking progress, once unlocked; more info below

Required QuestDefinition fields:

• Requirements

• Rewards

• Date Available

• Date Finished

Autostart Feature

The Autostart Feature starts a Quest, once one is unlocked.

To enable the Autostart feature:

1. Go to the Admin Console.

2. Navigate to GamePlay -> Quests -> Definitions -> Progress.

3. Double-click the current quest to bring up the Quest Definition Edit window.

4. Double-click Autostart (at the bottom) to enter edit mode.

5. Click the Toggle button -> Save (bottom-right).

The AutoStart feature is now enabled!

Unlock Requirements

Unlocking quests is a common feature among games and apps. A Locked Quest is a quest that cannot be started/progressed.

Note

All quests are locked by default.

In many cases, developers want conditions met before a quest can be unlocked. To define the requirements for Xsolla Backend, the Unlock Requirements field is used.

The Unlock Requirements field contains a List of QuestRequirement objects.

Each represents a single requirement to unlock a Quest.

To define a QuestRequirement object, click the Add button above the Unlock Requirements field in the Quest Definition Creation window:

This will bring up the Quest Requirement Edit window:

Field	Description
Type	A unique string used to denote event type; can be any value (recommended: dot-notation)
Title	The textual Title or name of the requirement
Description	The textual Description of the requirement
Icon	The Icon to display when representing the requirement
Value	The amount needed of this requirement to mark as complete (recommended:1)

Once filled out, click the Create button (bottom-right):

This will add a new unlock QuestRequirement object to the QuestDefinition -> Repeat as necessary.

Completion Requirements

• Once a quest is Unlocked and Started, its progress can be tracked on the server

• To define what progress is required to complete a Quest object is used

• The Requirements field contains a List of QuestRequirement objects

• Each represents 1 progress requirement to complete a quest

To define a QuestRequirement progress object, click the Add button (above the Requirements field) in the Quest Definition Creation window:

This will bring up the Quest Requirement Edit window:

Field	Description
Type	A unique string used to denote event type; can be any value (recommended: dot-notation)
Title	The textual Title or name of the requirement
Description	The textual Description of the requirement
Icon	The Icon to display when representing the requirement
Value	The amount needed of this requirement to mark as complete (recommended: 1)

Once filled out, click the Create button (bottom-right):

This will add a new progress QuestRequirement object to the QuestDefinition.

Quest Rewards

On completion of a quest, the player is often rewarded:

QuestReward objects are used to track entities stored on the Server, rewarding users upon completion of a quest:

Field	Description
Type	The Type or reward granted
Quantity	The amount of the reward granted
Entity Uid	Uid of the entity rewarded

The Type Field allows for 3 types of values:

Type	Description
ITEM	Granted an item
PROGRESS	Granted Quest Progress
QUEST	Granted a new quest

Note

You may want to save the Quest Definition at this point:

Scroll to the bottom of the Quest Definition Creation window -> Click the ‘Create’ button

To Create an ITEM reward, a Resource object must be created.

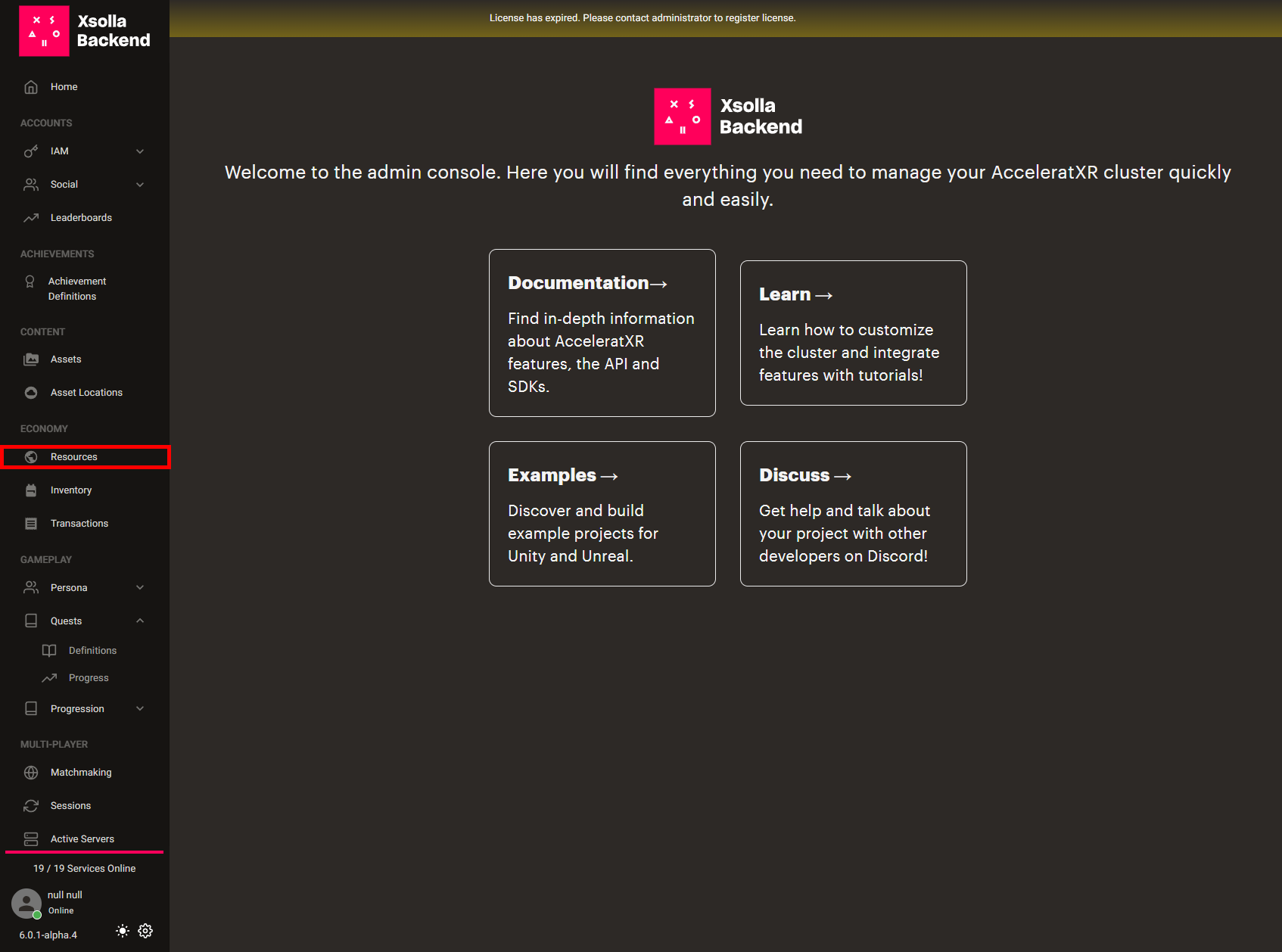

In the Admin Console, navigate to Economy -> Resources:

On the Resources page, click the Create button (top-right):

This will bring up the Resource Creation window:

Field	Description
Name	The Unique name of the resource
Cost	List of resources representing cost
Data	An arbitrary map of additional data about the resource
Defaults	The defaults to use when creating new instances of the resource
Description	Description of the resource
Parent	THe UUID of the parent resource to inherit stats, description, etc
Stackable	Indicates if the resource can be copied and stacked, or if each instance is considered unique
Stats	List of stats associated with the resource
Title	The name to display to the user

To make a stable Resource, only the Name field is required.

Note

Copy the UID of the resource

Once filled out, click the Create button to add the Resource to be used in QuestReward creation.

Note

Return to the previously-created QuestDefinition.

Scroll down to the Rewards section -> double click on the Rewards section to enter Edit Mode.

Click the Add button (above the Rewards section):

This will bring up the Edit Rewards window:

Set the type to Item.

Note

Paste the copied UID (from earlier) of the resources awarded into the Entity Uid field

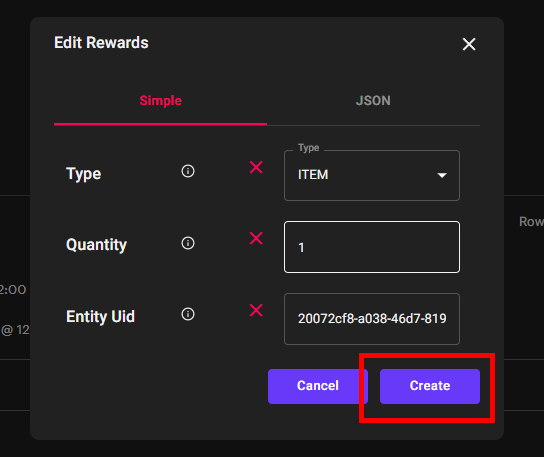

Click The Create button:

Once you define your QuestDefinition, scroll down to the bottom of the Quest Definition Creation window and click the Create button.

This will add your QuestDefinition object to the server. To use the new quest definition for you product, the Quest System API must be used.
